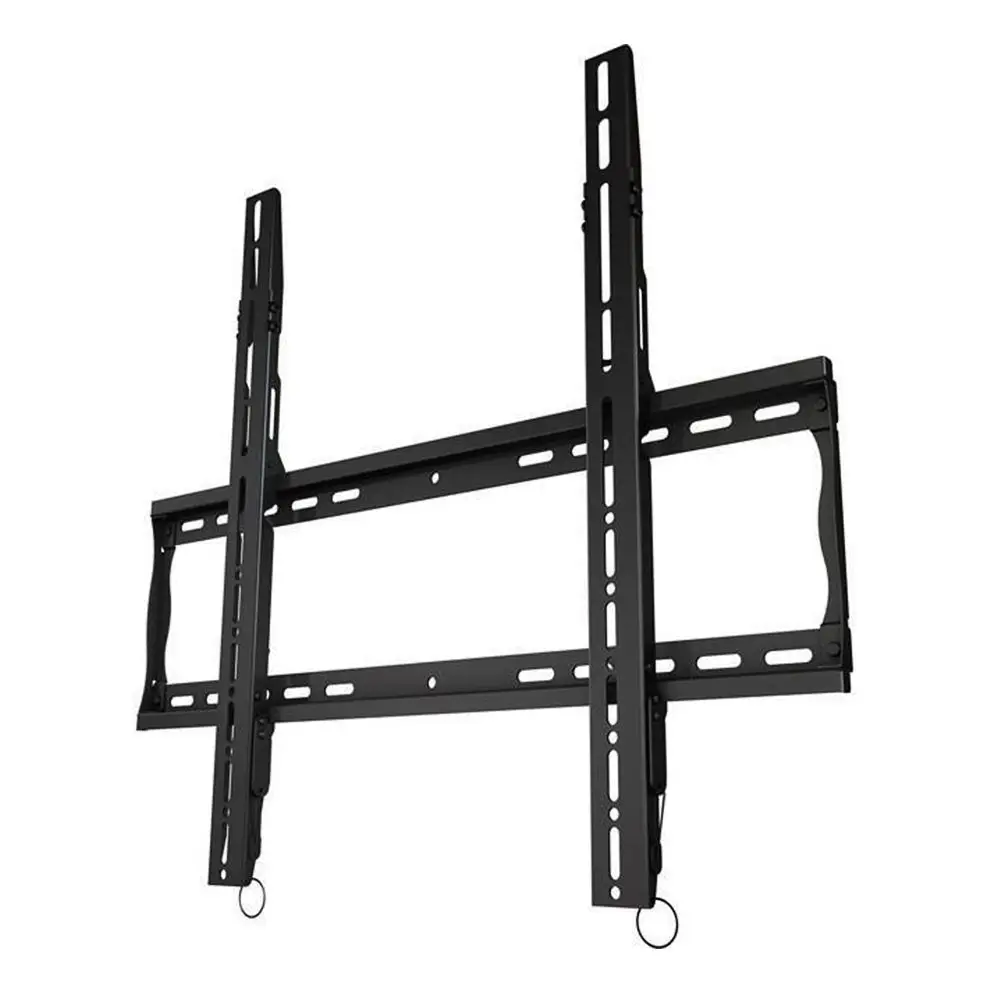

Crimson Universal Flat Wall Mount with Leveling Mechansim F63A

Universal flat wall mount with leveling mechanism, for 37” to 90” flat panel screens

Adjustable flat wall mount with Universal hole pattern (832x601mm) to fit a wide selection of flat panel screens. Makes a secure installation quick and easy. Post-installation leveling feature allows for perfect screen positioning even when ceiling is not perfectly level. Click in place screen placement requires no tools to secure the screen on the wall. Pre-installed securing screws are included and may be optionally engaged for additional theft deterrent. Open wall plate design and kickstand feature provides easy access to wiring.
  • Post-installation leveling
  • Click in place screen placement without use of tools
  • Optional securing screws locks release latch for additional security
  • Universal design
  • VESA compatible
  • Low-profile, holds screen close to wall for a clean look
  • Open wall plate allows easy access for wiring
  • Lateral shift for perfect placement
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included


  • TV size range: 37” – 90”
  • Weight capacity: 200lb (91kg)
  • Max mounting pattern: 832x601mm
  • VESA mounting pattern: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
  • Post-Installation Leveling: +-5º
  • Depth from wall: 1.4” (35.6mm)
  • Lateral adjustment: varies with screen
  • Mounting surface: wood stud, concrete, cinder block or metal stud (accessory required HT6)
  • Stud spacing: dual stud 16”, 20”, 24” on center, triple stud 16” on center
  • Construction: high-grade cold rolled steel
  • Product finish: scratch resistant epoxy powder coat
  • Product weight: 5.1lb (2.3kg)
  • Package specifications: 36”x11”x4”
  • Color: black
  • Model number: F63A
  • Warranty: 10-years
